Energy Pack Long

Energy Pack Long

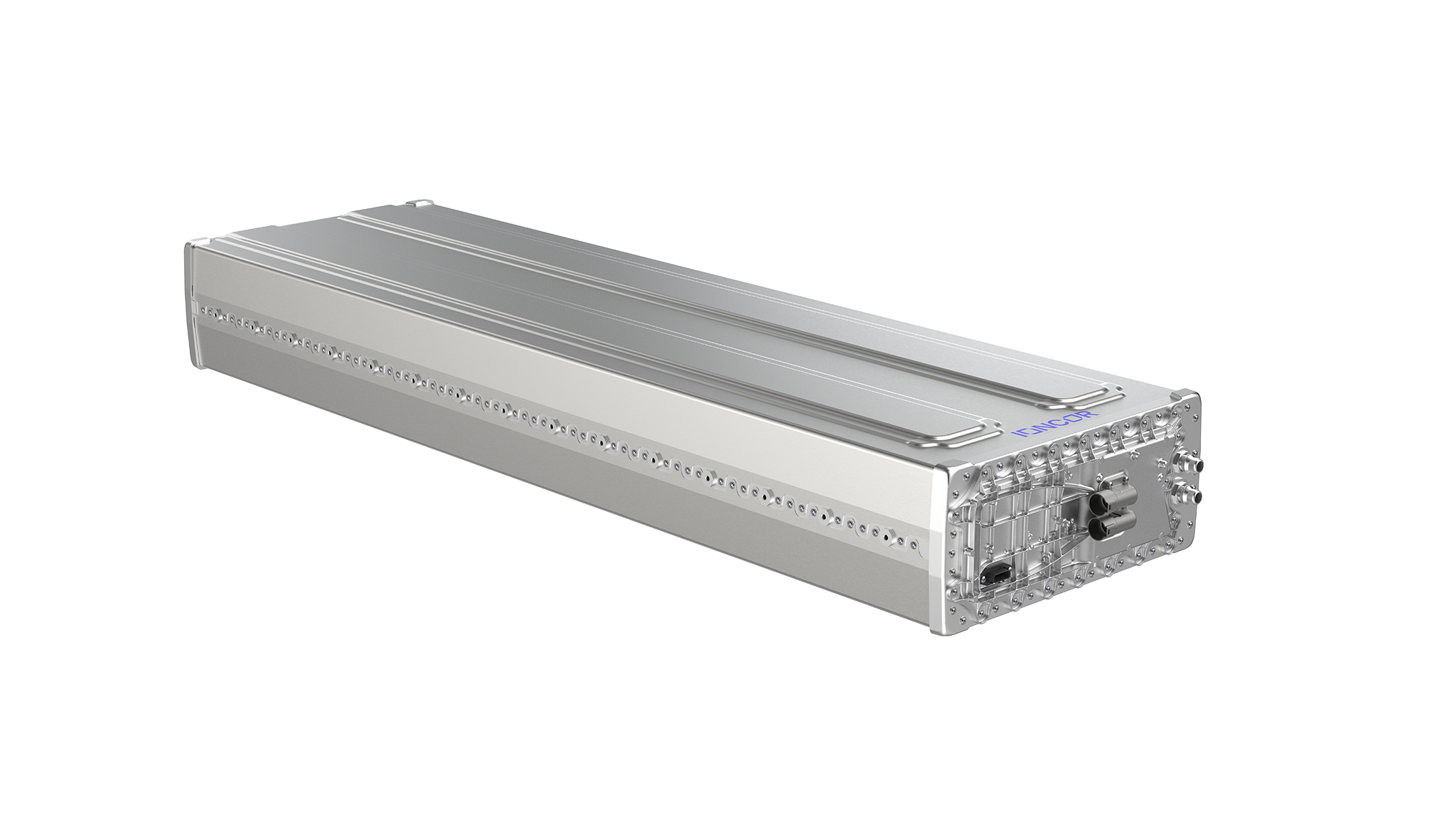

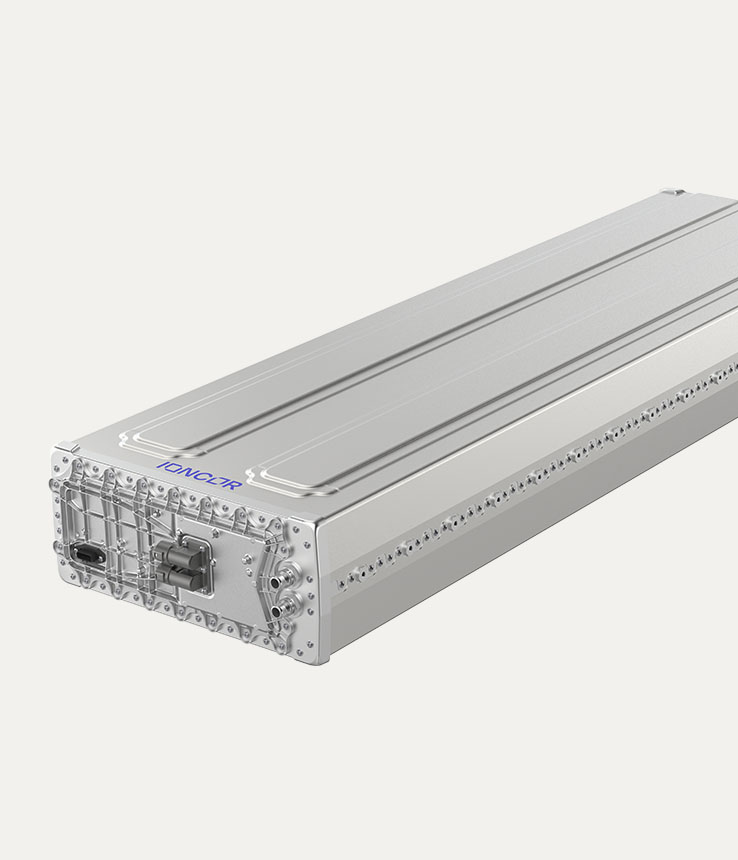

IONCOR product innovation, Energy Pack Long – Energy Pack Long is a new addition to the Energy Pack family. It is a flexible, high-density battery system designed to complement IONCOR’s portfolio and accelerate cost-efficient, reliable electrification of applications with the most demanding requirements such as bus and truck fleets.

Energy Pack Long

Developed to meet demanding requirements of truck, bus and off-highway OEMs.

Whatever shape, size, speed, use-time or torque requirements – we make electrification faster and smarter for more applications every day by delivering ready-to-go modular battery products and customized systems with the newest technologies available; always thoroughly tested, and safe.

All equipment can be electrified, but some applications call for more tailored solutions; buses, trucks, construction, material handling, and agriculture are examples of sectors with diverse and complex use cases that require innovative approaches to achieve a seamless and effective transition.

Energy Pack Long features

  • Cell-to-pack concept

    • Latest pack design technology, ensuring high packaging density

  • High energy density

    • Enabling longer range, higher payload or more operating hours depending on the end-application

  • Easy integration

    • Flexible pack distribution on machine or vehicle level
    • Multiple mounting orientations possible

  • Durability for harsh environment

    • High ingress protection grade IP6K9K/IP67

  • Designed for safety critical applications

    • Safety certified battery management system (BMS)
    • Providing superior thermal and chemical stability

  • Modularity & scalability

    • Different configurations made easy up to 1,500 kWh, with a suitable step-size of 79 kWh per pack

Energy Pack Long data sheet

TECHNICAL DATA* ENERGY PACK LONG
Nominal capacity / voltage 79 kWh / 666 V
Pulse discharge current rate 3C
Continuous discharge current rate @ 25°C 2C
Fast Charging (10-80%) @25 °C, Peak C-Rate & time 3C, 25 minutes
Energy density 290 Wh/l, 160 Wh/kg
Cycle life >7,000 cycles **
Dimensions mm (L×W×H) 1946 × 558 × 249 mm
Operating temperature range -30 °C … +60 °C
Cooling Liquid cooling

* Technical data definitions are subject to change and will be aligned as part of customer integrations processes.

** Depending on usage profile

Always tested and safe

Our battery systems are developed with industry expertise, ensuring safe, tested, and reliable performance.

Standards compliance

ECE R100 Battery safety
ECE R10 EMC
UN 38.3 Transport Safety
ISO 16750 Environmental conditions
EN 1175 Safety of industrial trucks
CE-Marking
(EU) 2023/1542 – Battery Passport

Functional Safety, up to:
ISO 26262 Asil C
IEC 61508 SIL 2
ISO 13849 PL D
IEC 62061 SIL 2
